503 BMX x Volume - Voyager XL Limited Frame

Limited Edition Blood Transfusion Red Colorway.... Happy Halloween!

• Voyager XL Frame (503 BMX Collab)
• Top Tube:  20.75" or 21"
• Chainstay: 13″
• BB height: 11.7″
• BB Width: 74mm
• Seat Tube height: 9.25″
• Head Tube Angle: 75.25°
• Seat Tube Angle: 71°
• Seat Post: 25.4
• Headtube: Integrated (45°X45° Campy Spec)
• Brake Mounts: Removable Seatstay Mounts
• Dropouts: Heat Treated, 6mm thick with built in chain tensioners. Clears hub guards and pegs of all sizes.
• Color: Blood Transfusion Red
• Weight: 5 lbs 2 oz (21″)

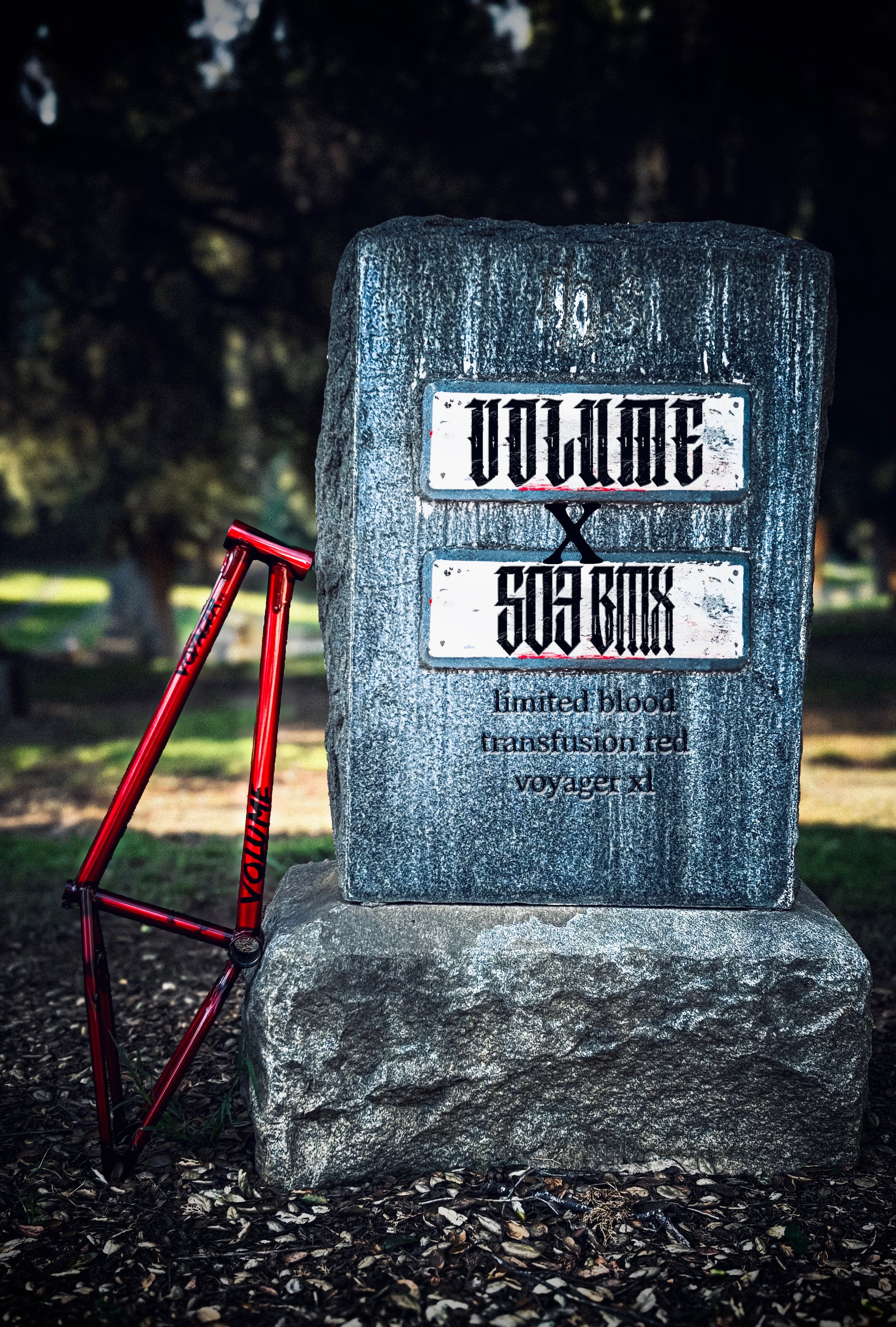

Powdercoated by 503 BMX out of Nampa, ID. This is a Limited Edition Blood Transfusion Red colorway for the existing Voyager XL Frame. Graphics designed by Ben Soumokil.

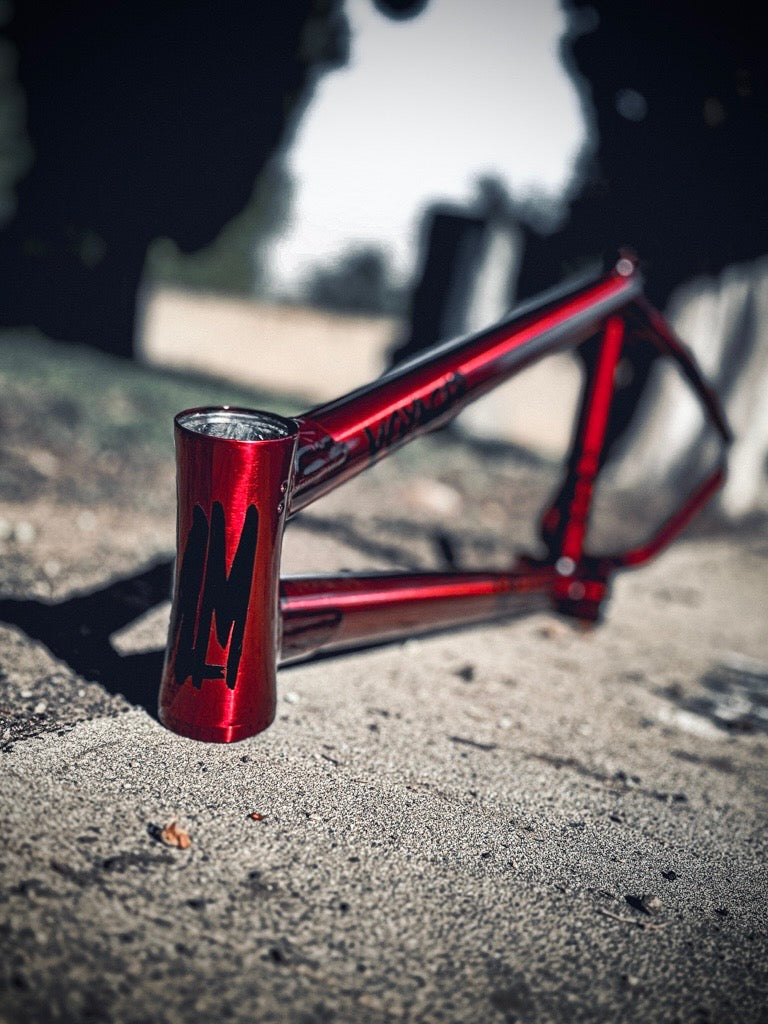

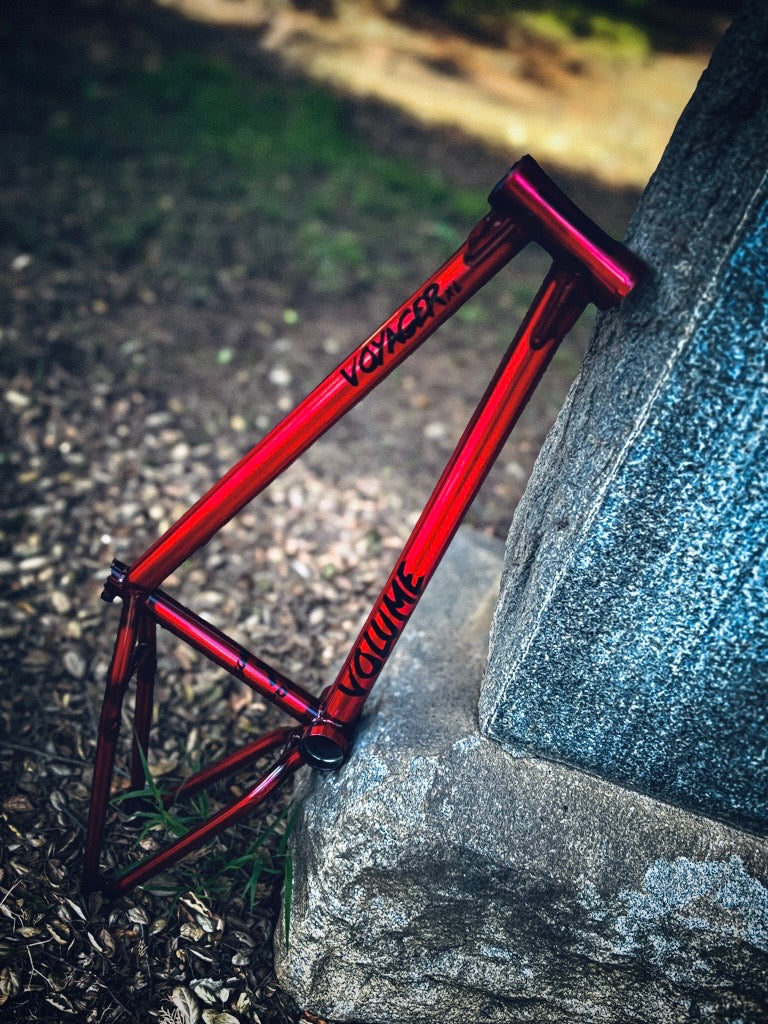

The Voyager XL frame features the same tech feel of the Voyager V2, but with a little extra length. It has a 75.25º heat tube, longer 13” slammed chainstay (13.25” center to center), and a 9.25” seat tube height. This frame also features double butted 4130 heat treated chromoly tubing, hour glass head tube, and small/clean 6mm thick laser cut and welded dropouts with built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tire clearance.
