Voyager XL Frame

• Voyager XL Frame
• Top Tube: 20.5″, 20.75″, 21″
• Chainstay: 13″ (13.25″ center to center)
• BB height: 11.7″
• BB Width: 74mm
• Seat Tube height: 9.25″
• Head Tube Angle: 75.25°
• Seat Tube Angle: 71°
• Seat Post: 25.4
• Headtube: Integrated (45°X45° Campy Spec)
• Brake Mounts: Removable Seatstay Mounts
• Dropouts: Heat Treated, 6mm thick with built in chain tensioners. Clears hub guards and pegs of all sizes.
• Colors: ED Black, Matte Trans Blue to Raw Fade
• Weight: 5 lbs 2 oz (21″)

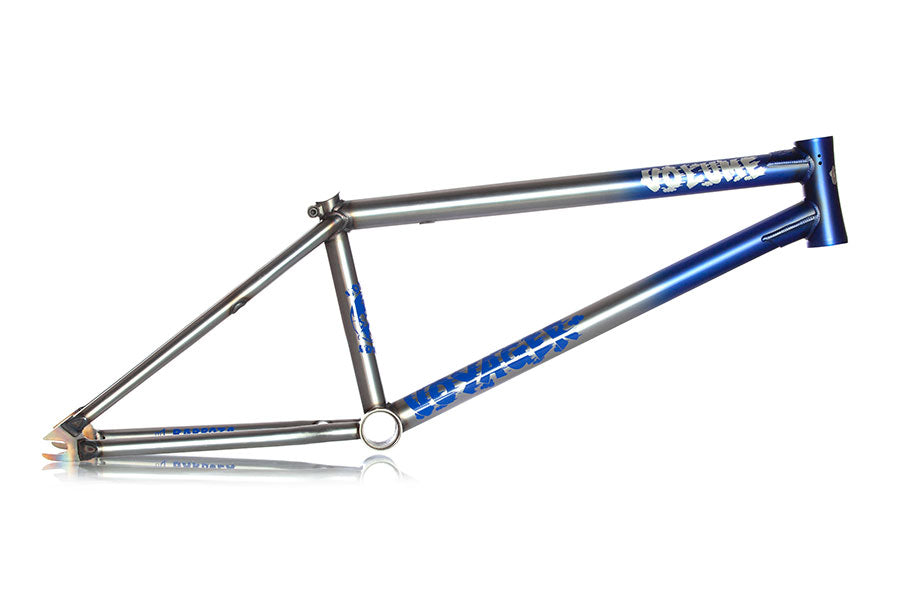

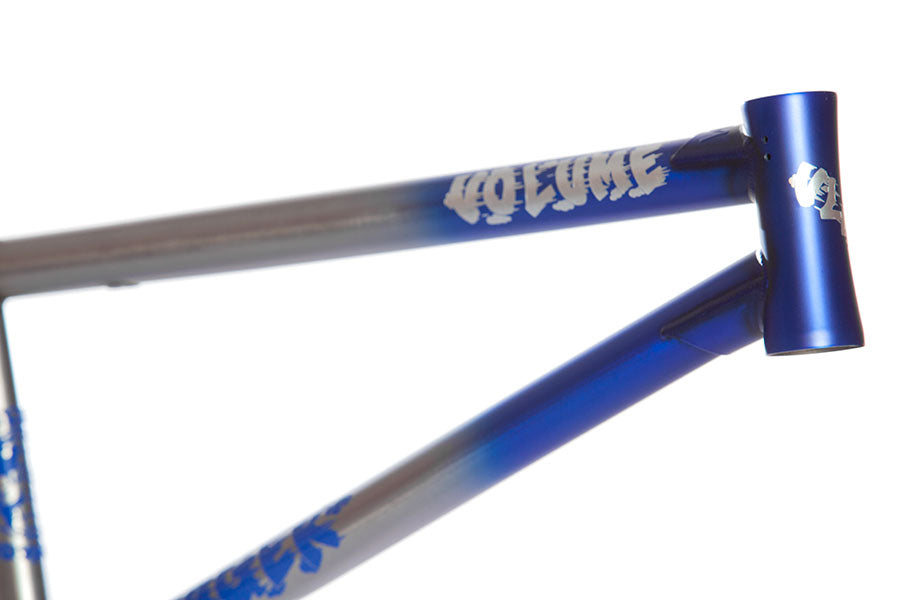

The New Voyager XL frame features the same tech feel of the Voyager V2, but with a little extra length. It has a steeper 75.25º heat tube, Longer 13” slammed chainstay (13.25” center to center), a higher 9.25” seat tube height, and a 20.5” size for shorter riders. This frame also features double butted 4130 heat treated chromoly tubing, hour glass head tube, and small/ clean 6mm thick laser cut and welded dropouts with built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tire clearance.
