503 BMX x Volume - Voyager XL Frame Reflective Copper

503 BMX x Volume - Voyager XL Frame Reflective Copper

Regular price $321.99 USD
Regular price $321.99 USD Sale price $321.99 USD
Sale Sold out
Size
 More payment options

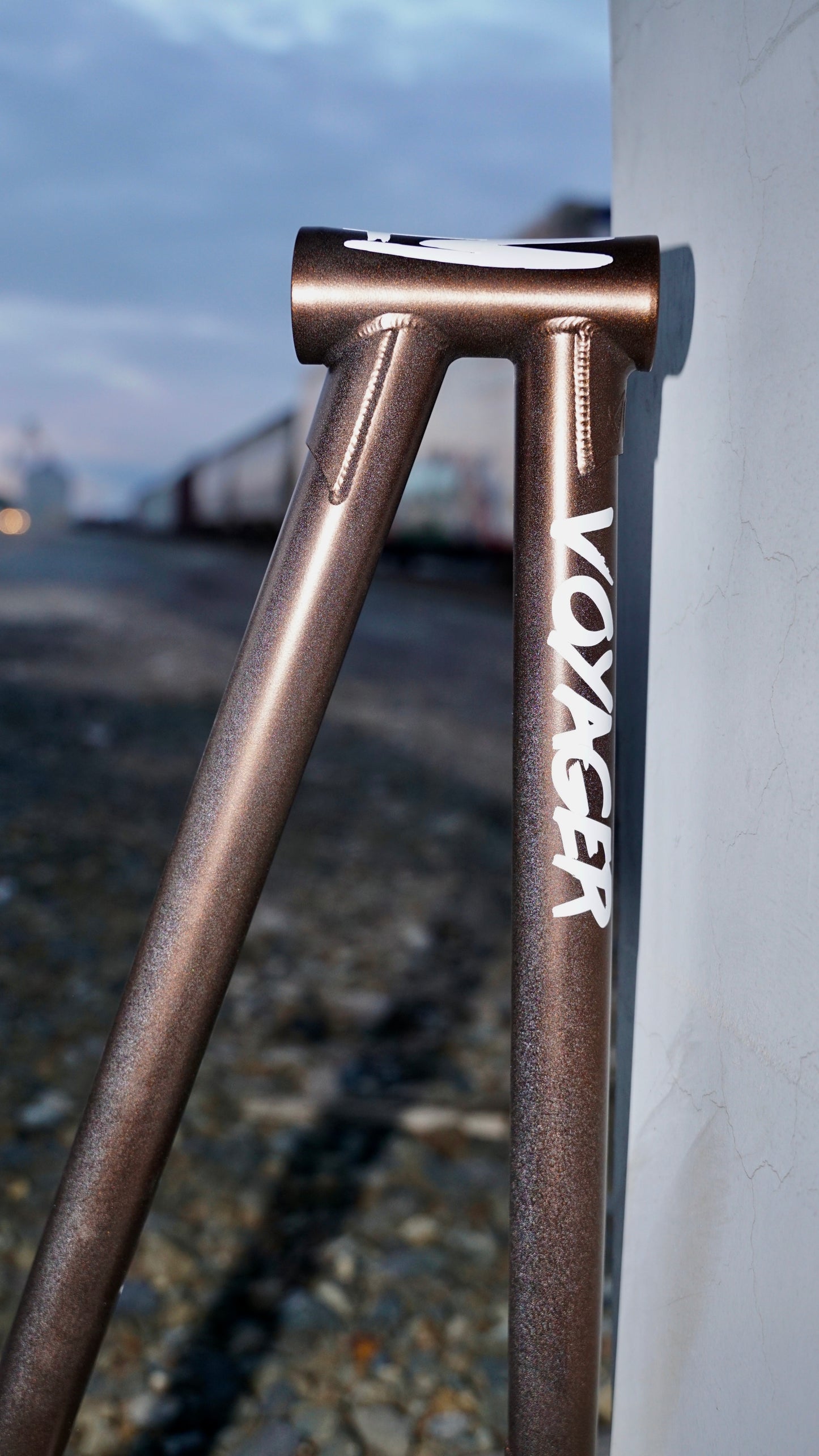

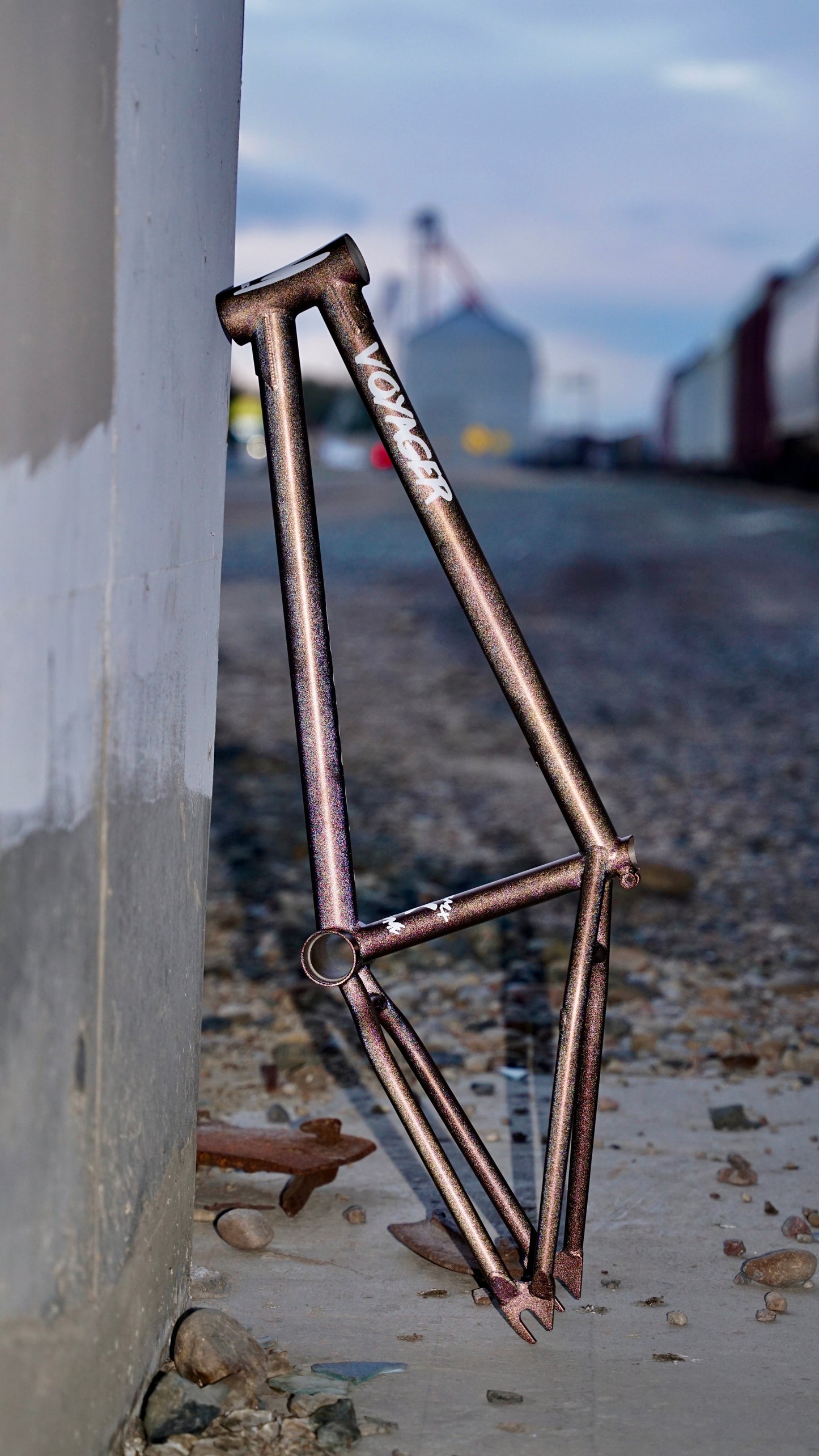

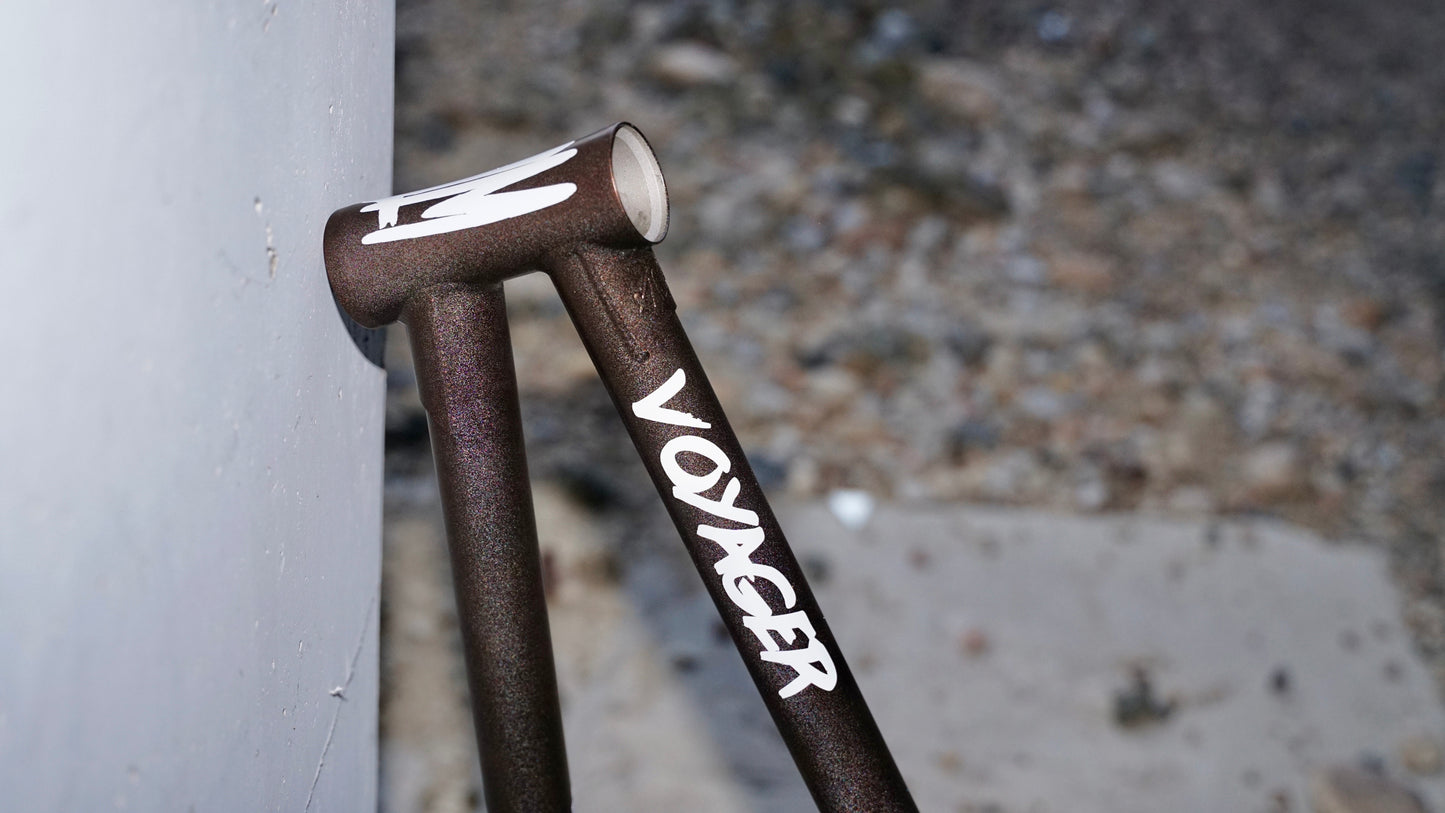

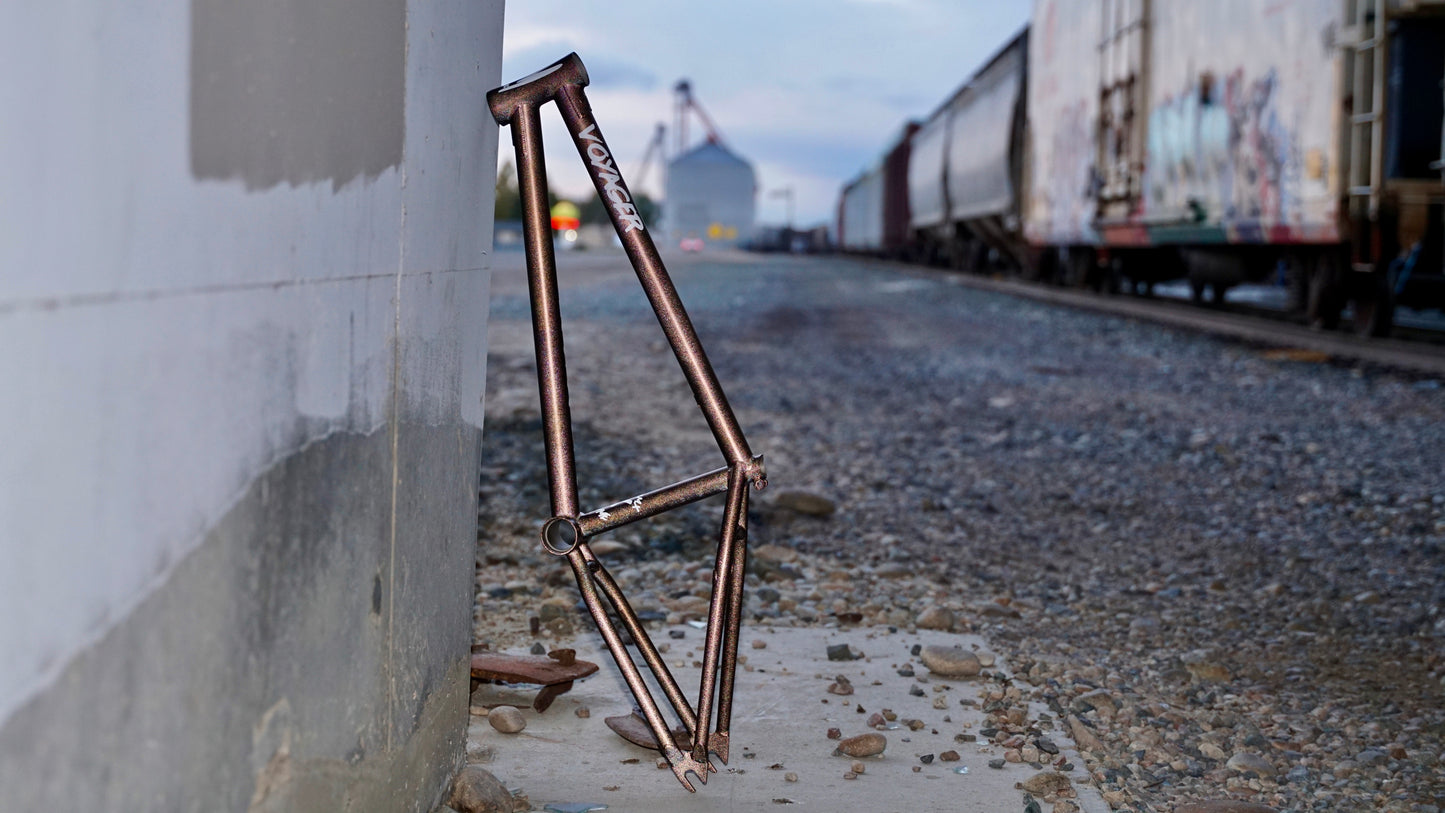

Limited Edition Colorway in collaboration with 503 BMX. Reflective Copper Voyager XL with White Decals. Get em' while you can! Only three frames made!

  • Voyager XL Frame (503 BMX Collab)
  • Top Tube:  20.75" or 21"
  • Chainstay: 13″
  • BB height: 11.7″
  • BB Width: 74mm
  • Seat Tube height: 9.25″
  • Head Tube Angle: 75.25°
  • Seat Tube Angle: 71°
  • Seat Post: 25.4
  • Headtube: Integrated (45°X45° Campy Spec)
  • Brake Mounts: Removable Seatstay Mounts
  • Dropouts: Heat Treated, 6mm thick with built in chain tensioners. Clears hub guards and pegs of all sizes.
  • Color: Reflective Copper
  • Weight: 5 lbs 2 oz (21″)

Powdercoated and stickered by 503 BMX out of Nampa, ID. This is a Limited Edition colorway for the existing Voyager XL Frame. Graphics designed by Ben Soumokil.

The Voyager XL frame features the same tech feel of the Voyager V2, but with a little extra length. It has a 75.25º heat tube, longer 13” slammed chainstay (13.25” center to center), and a 9.25” seat tube height. This frame also features double butted 4130 heat treated chromoly tubing, hour glass head tube, and small/clean 6mm thick laser cut and welded dropouts with built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tire clearance.
