Velocity Frame

• Velocity Frame
• Top Tube: 20.75″ & 21″
• Chainstay: 12.75″ (Slammed)
• BB height: 11.78″
• Seat Tube height: 9.50″
• Head Tube Angle: 75.50°
• Seat Tube Angle: 71°
• Seat Post: 25.4
• Headtube: Integrated (45°X45° Campy Spec)
• Brake Mounts: Removable Seatstay Mounts
• Dropouts: Heat Treated laser cut, 6mm thick W/Built In Chain Tensioners. Clears hub guards and pegs of all sizes.

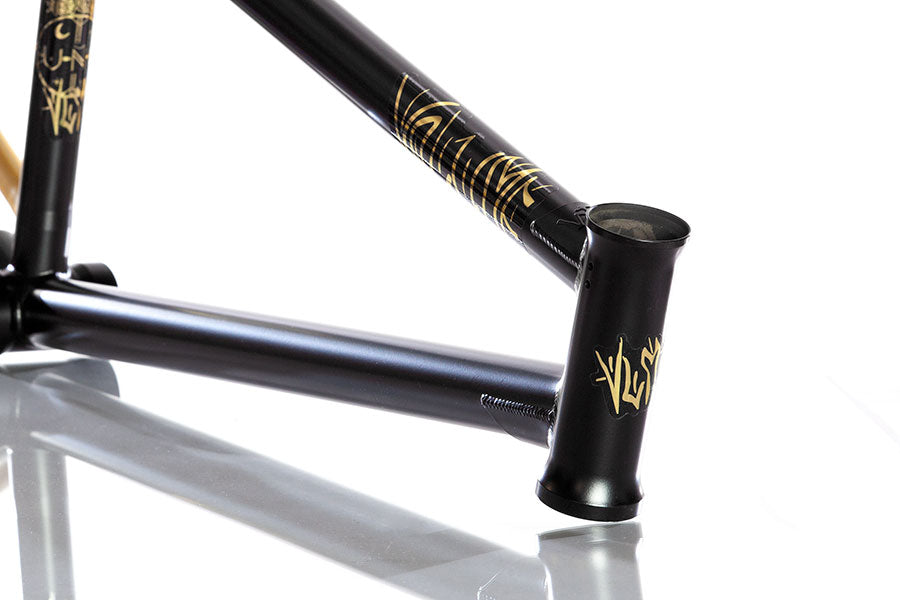

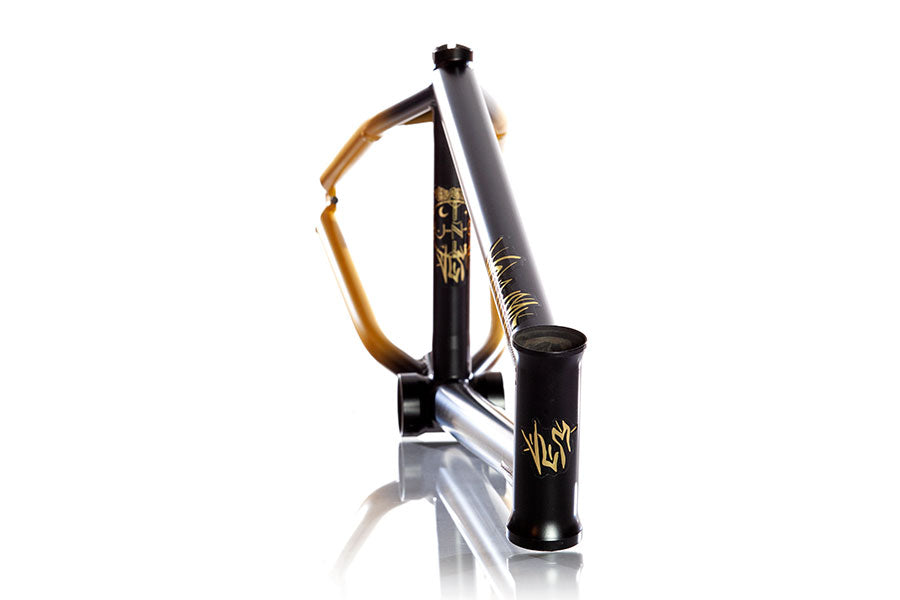

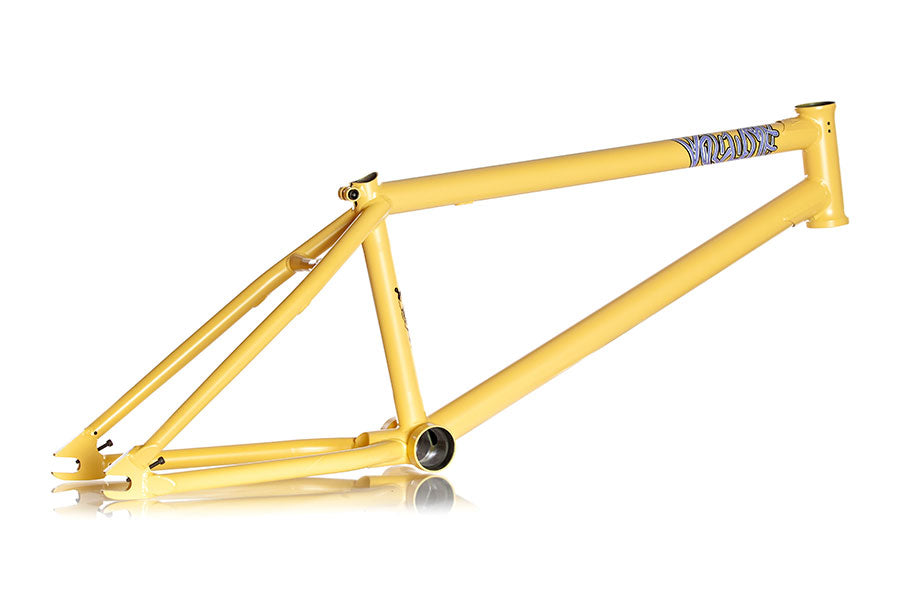

• Color: LB Sand (Markell Jones), Black/Gold Fade (Victor Munoz)

The all new Velocity Frame.

Full Heat Treated Chromoly frame, with multi butted tubing for weight saving, 6mm thick laser cut dropouts with built in chain tensioners, classic wishbone chainstay, CNC seatstay bridge and an externally butted seat tube.

Featuring a new 5” tall head tube(drilled for gyro tabs),

75.50° ht angle,

11.78”bb height - responsive and snappy,

12.75” chainstay(slammed) * 13” center to center

9.5” standover for stability

TT: 20.75” or 21”

Weight: 4lbs 15oz(21”tt)

With a built in seat post clamp & removable seatstay brake mounts.

Available in LB Sand (Markell Jones) or Black/Gold Fade (Victor Munoz)
